104硬體裝修乙級第一站時序圖

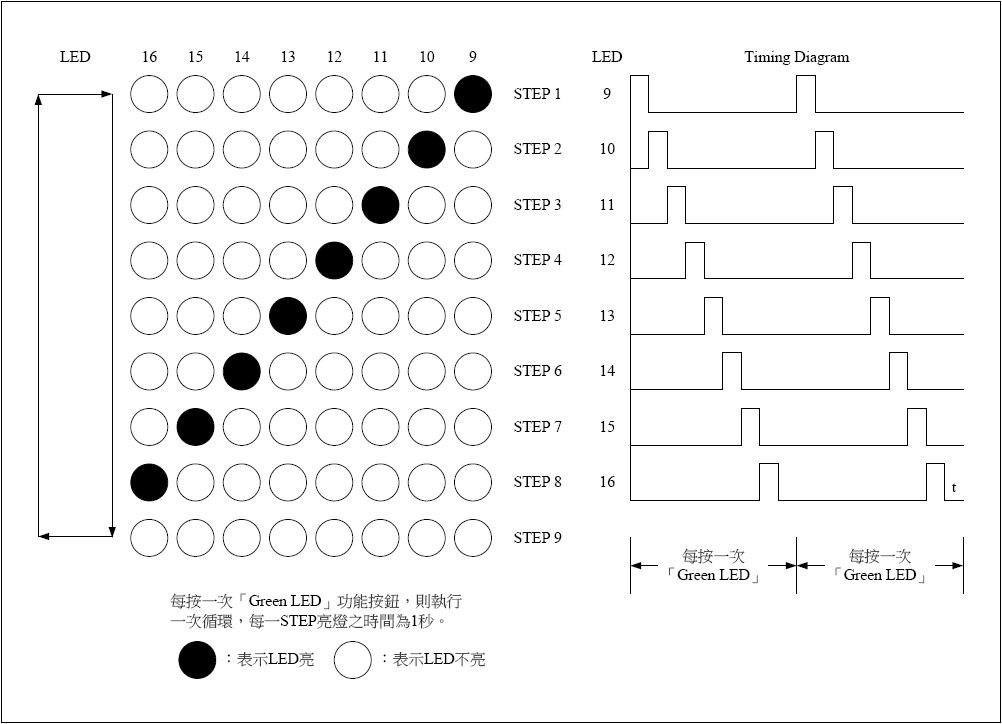

  12000-940201

       Array(1, 2, 4, 8, 16, 32, 64, 128, 0)

  12000-940202

        Array( 128, 64, 32, 16, 8, 4, 2, 1, 0)

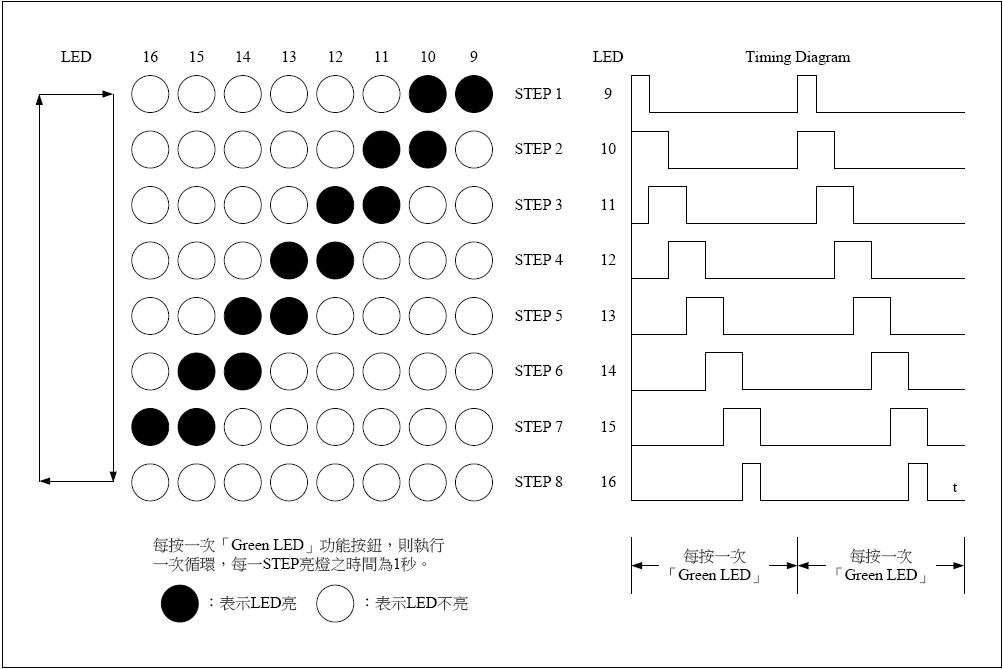

  12000-940203

        Array( 3, 6, 12, 24, 48, 96, 192, 0)

  12000-940204

        Array( 192, 96, 48, 24, 12, 6, 3, 0)

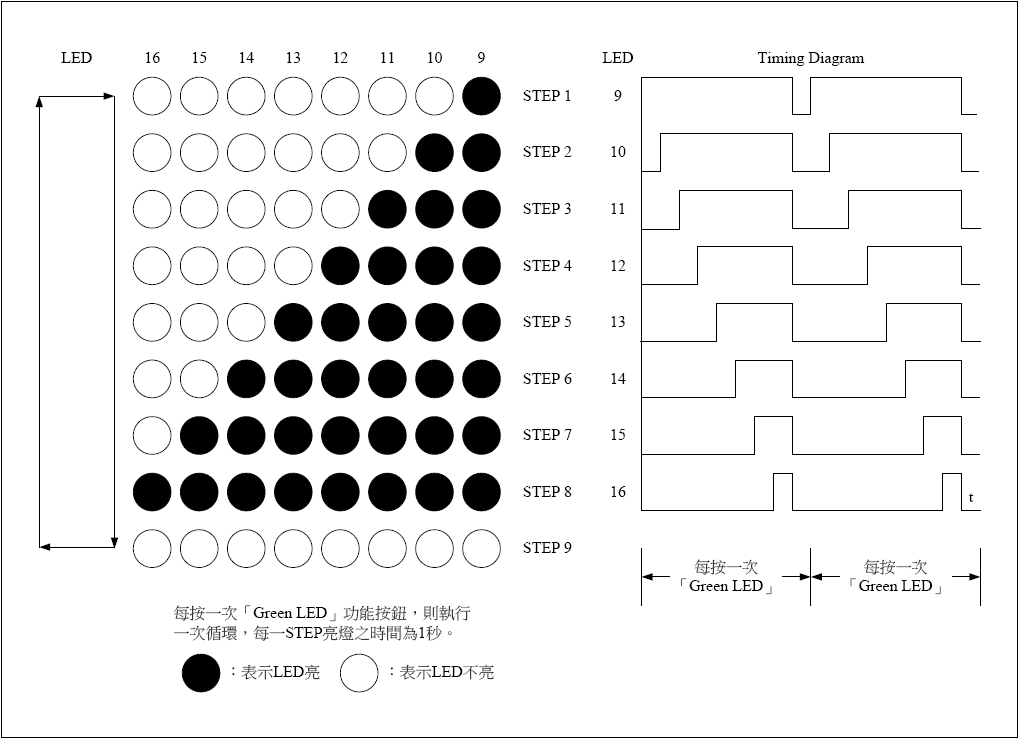

  12000-940205

        Array( 1, 3, 7, 15, 31, 63, 127, 255, 0)

  12000-940206

        Array( 128, 192, 224, 240, 248, 252, 254, 255, 0)

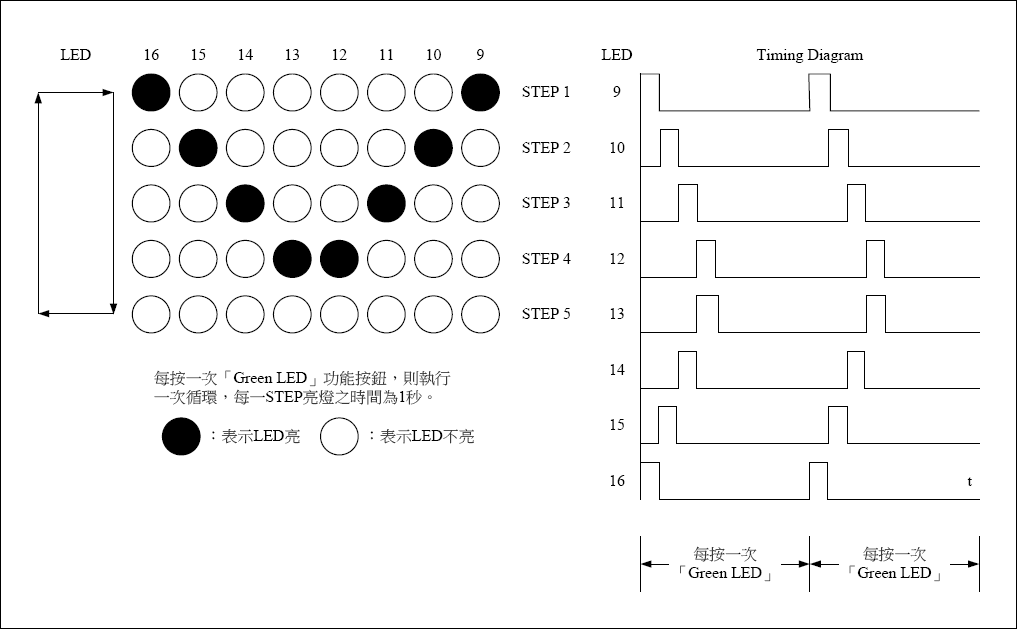

  12000-940207

        Array( 24, 36, 66, 129, 0)

  12000-940208

         Array( 129, 66, 36, 24, 0)

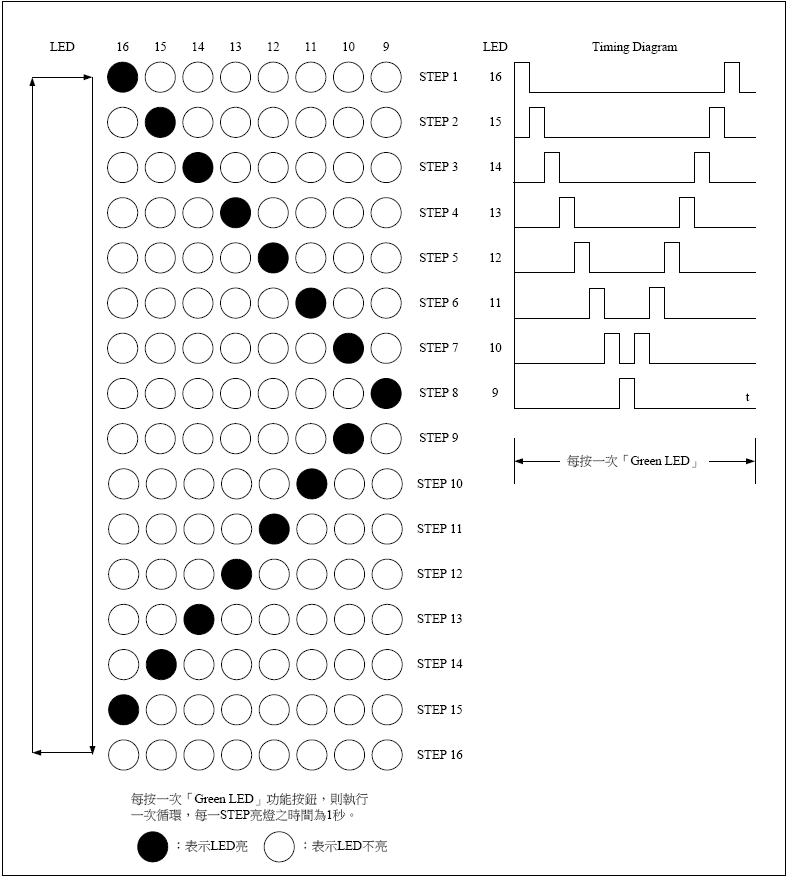

  12000-940209

        Array( 1, 2, 4, 8, 16, 32, 64, 128, 64, 32, 16, 8, 4, 2, 1, 0)

  12000-940210

        Array( 128, 64, 32, 16, 8, 4, 2, 1, 2, 4, 8, 16, 32, 64, 128, 0)
